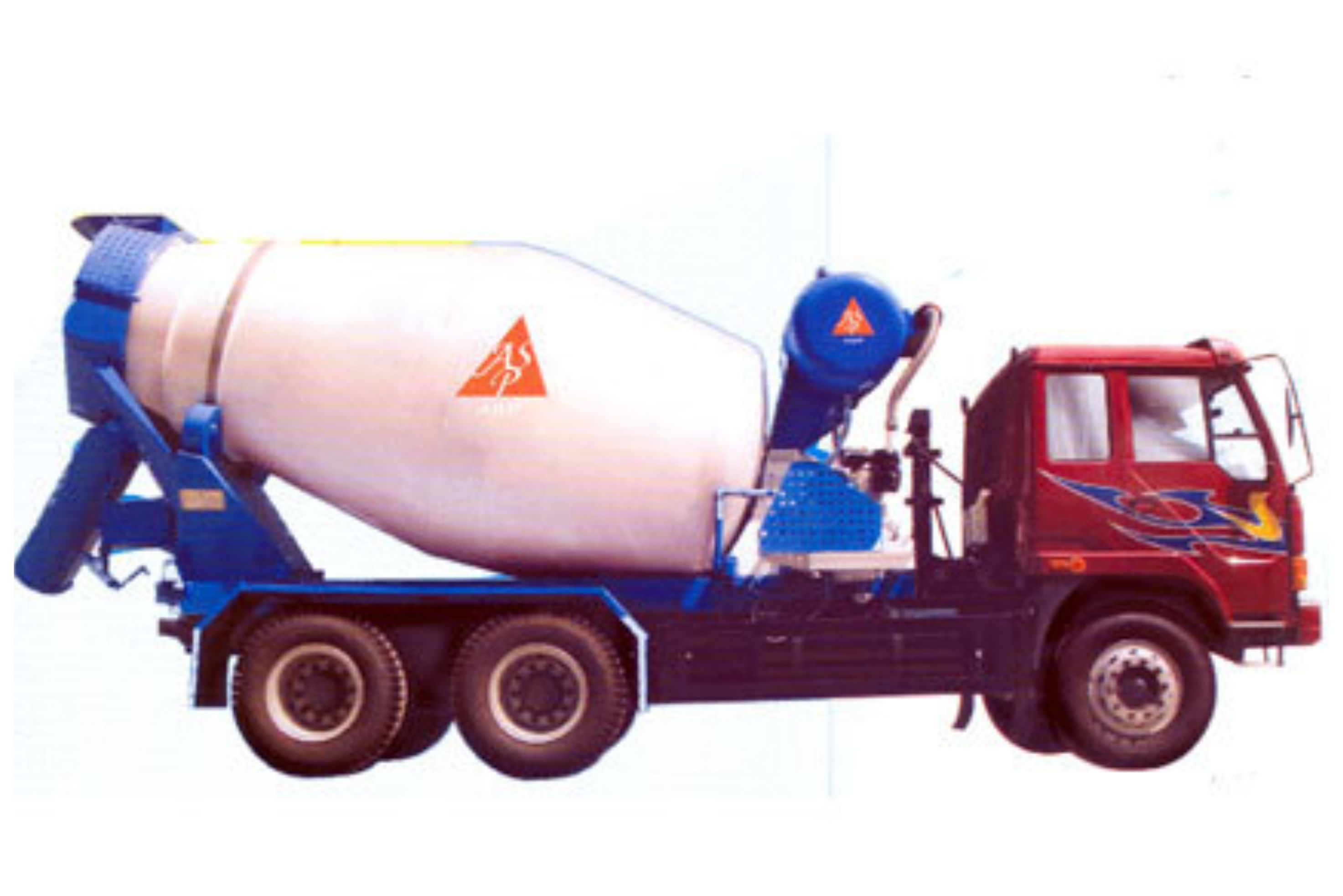

Transmit Mixer

We are reputed enterprises in this industry, offering a wide gamut of Transmit Mixer that is available in numerous specifications.


The range of Transit Mixer design conform to international concrete industry standards and specifications. Units are available in 6.0 CM drum mixing capacities. Engineering and Design has been done for fast and efficient concrete mixing discharge for high strength and low slump concrete mix grades Transit mixer is to be driven by heavy duly planetary gearbox and variable displacement hydraulic motor. Integrated hydraulic oil cooler is provided to ensure precise operating temperatures. This configuration guarantees the mechanical durability of the dance unit The trunnion ring of the Mixer is rolled from sold steel bar section Rollers are machined from work-hardened steel and come with the low maintenance heavy duty sealed roller bearings..


We can even customize machineries as per our clients depending on their specifications and requirements.  We believe in customer’s satisfaction and in long term relationships.



CAPACITY

  • ASP 6- 6 CM ..
Sr no. DESCRIPTION Specification
1 Filling Capacity 6 Cu.M
2 Geometric Volume 11.5 Cu.M
3 Filling Ratio 52.18%
4 Water Tank Capacity 550 Litres
5 Maximum Drum Diameter 2300 mm
6 Drum Angle 13 deg
7 Water Line 7100 litres
8 Water Pump pressure 5 bar
9 Prime Mover Kirloskar Air Cooled Diesel Engine 494
10 Power 70 HP
11 Material of Construction ST – 52
12 Unit Weight 4000 Kg.
  • Efficient Hydrostatic drive .
  • High mixing capacity and maximum discharge of concrete due to the optimized position of spiral blade in drum.
  • Long life of spiral blade and drum due to wear resistance steel.
  • Harden roller increase the reliability of performance and cover provide safety and protection against dust.
  • Operational is user friendly .
  • Imported Hydraulic pump, Motor and oil Cooler.
  • Efficient & Reliable after sales- Service.
