Road Equipment Machinery Concrete Batching Plant

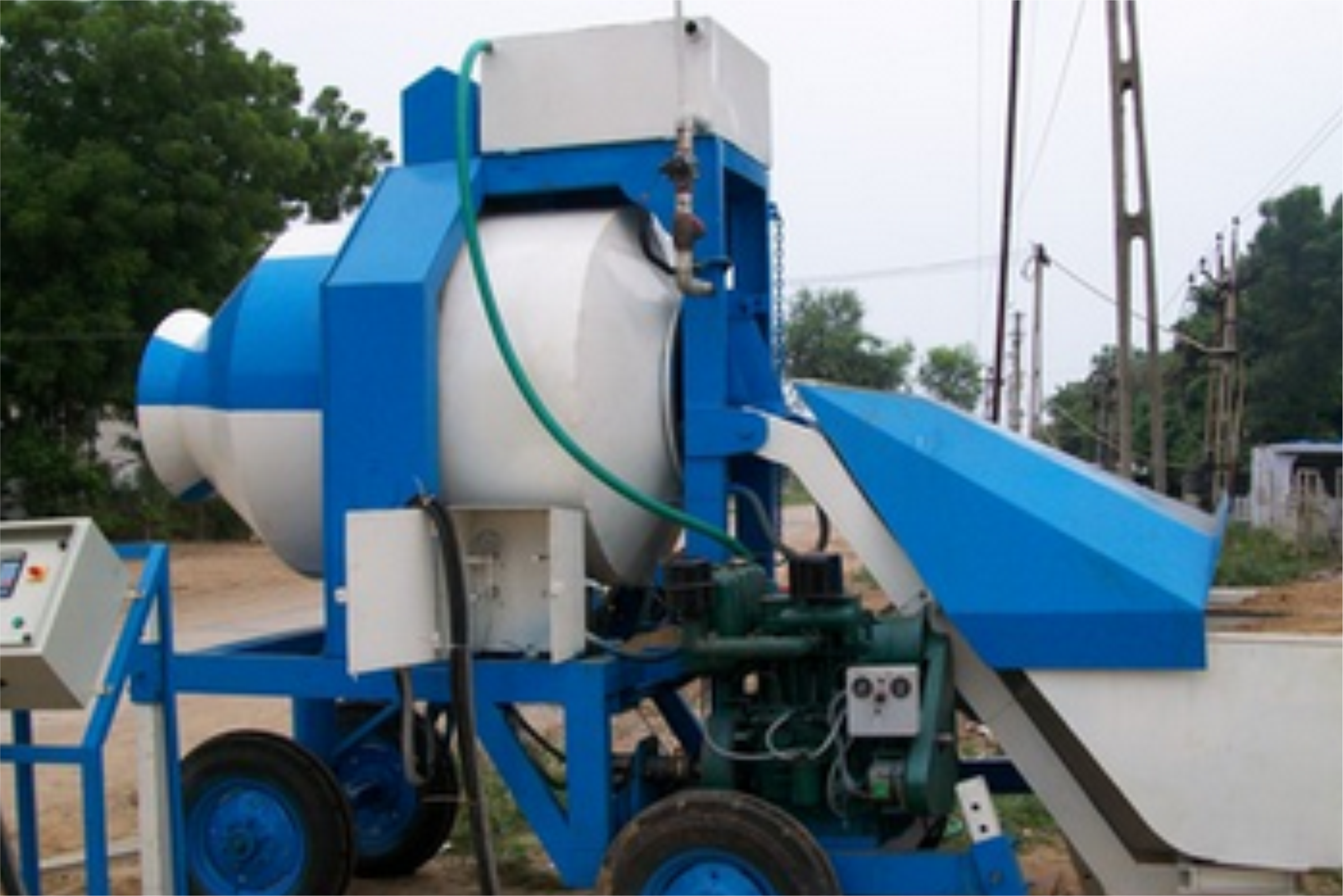

Reversable Mixer
Sr no. Perticular Specification
1 Model RM 800 RM 1050
2 Hopper Capacity 800 Liters 1050 Liters
3 Batch Capacity 600 Liters 750 Liters
4 Capacity 10CM / Hr 12CM / Hr
5 Prime Movers Design Engine
6 Jack Leveling
Drum Motor Power
4 Pin Type 10 HP 4 Pin Type 12 HP
7 Water Tank Capacity 250 Liters
8 Water Feeding System Through 1 HP Pump Through 2 HP Pump
9 Weighing System Load Cell based digital Weighing System
10 Hydraulic Power Pack 7.5 HP 7.5 HP
11 Hydraulic Tank Capacity 40 Liters 40 Liters
12 Control Panel Microprocessor based Control Panel
13 Tyre Pneumatic Wheel
14 No. of Tyre 4 Nos
15 Total Power 18.5 HP 22 HP
16 Overall Dimensions L4100 0 W 2100 x H 2900 L4200 x W 2350 0 H 3300

Our rapidly growing organization is offering a wide gamut of Reversible Mixer with the following specifications.


The range of Mixer design conform to international concrete industry standards and specifications. Units are available in 10. to 12 CM mixing capacities. Engineering and Design has been done for fast and efficient concrete mixing discharge for high strength and low slump concrete mix grades. Mixer is to be driven by heavy duty planetary gear box. This configuration guarantees the mechanical durability of the drive unit. The trunnion ring of the Mixer is rolled from solid steel bar section. Rollers are machined from work-hardened steel and come with low maintenance heavy duty sealed roller bearings.


We can even customize machineries as per our clients depending on their specifications and requirements.  We believe in customer’s satisfaction and in long term relationships.


  • Reliable performance.
  • High efficiency .
  • Sturdiness.
