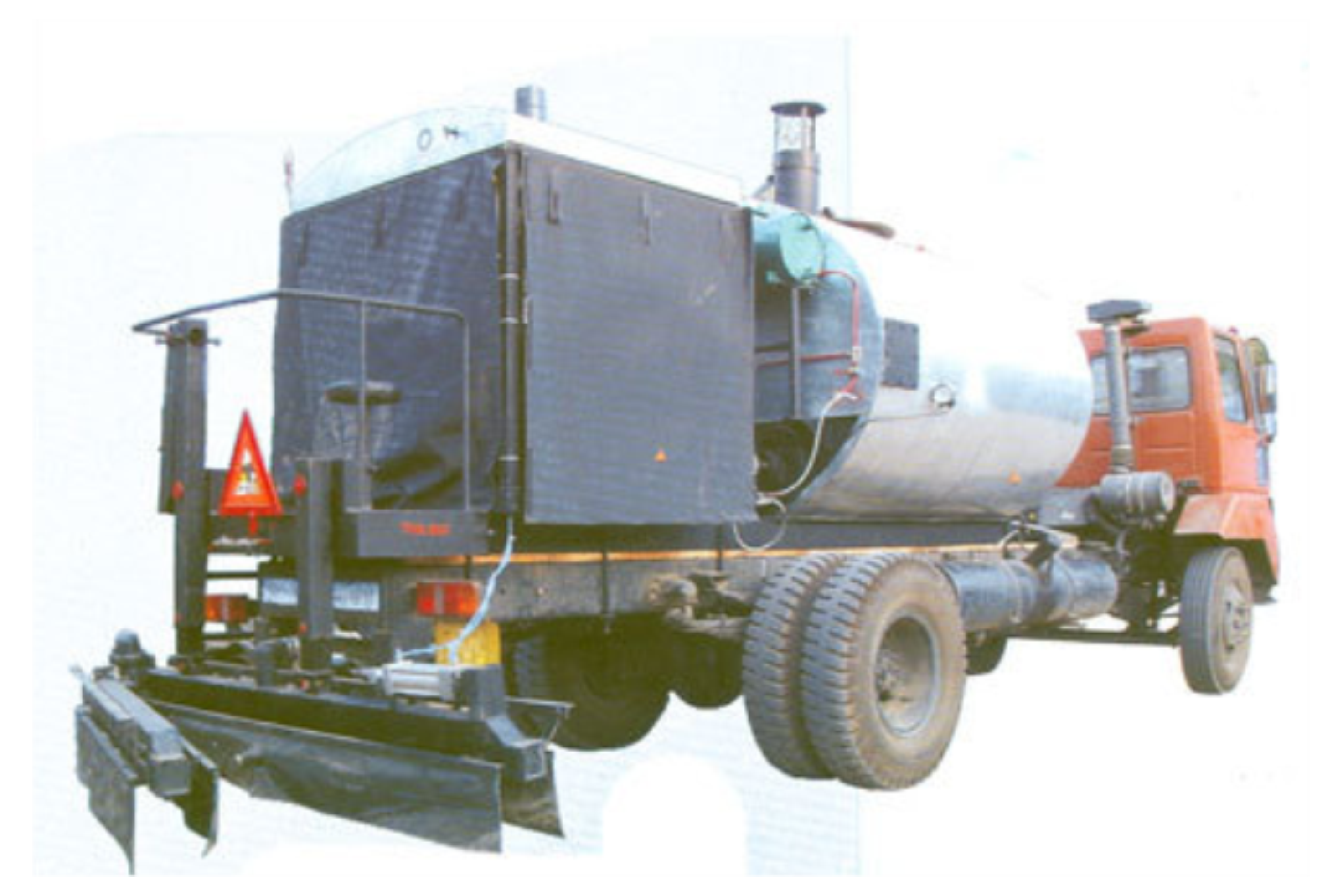

Bitumen Sprayer

We are engaged in offering our clients a high quality range of Bitumen Sprayer that is provided in different specifications.


We can even customize machineries as per our clients depending on their specifications and requirements.  We believe in customer’s satisfaction and in long term relationships.


If you have any question regarding Bitumen Tank, please feel free to contact us.



CAPACITY

  • 4000 Liters.
  • 6000 Liters.

  • Fully insulated tank with High performance Heating System.
  • Controllable heating flame direct unit.
  • Air Cooled Design Engine and positive displacement gear pump.
  • Fully circulation spray bar.
  • Digital speed indicators.
Description Model (Asp 4000) Model (Asp 6000)
Capacity in liter 4000 6000
Tank Shape Round Oval
Insulation with 180°C Temperature Resistance Glass Wool in mm 50 50
Manhole size in mm 600 mm dia 600 mm dia
Spray bar length with extension in mm 4250 mm 4250 mm
Control of spray bar Pneumatically operated Pneumatically operated
Bitumen Spraying Pressure in kg / cm² 0-4 0-4
Bitumen Pump 2” x 2” positive displacement gear pump with output of 400 Ltr / min 2” x 2” positive displacement gear pump with output of 400 Ltr / min
Air Compressor 2 Cylinder Air Compressor 2 Cylinder Air Compressor
Air Compressor Gauge 0-6 Kg / Cm² 0-6 Kg / Cm²
Burner Pressure Jet Burner Pressure Jet Burner
Burner Fuel Consumption 20 Ltr / Hr 20 Ltr / Hr
Burner Fuel Tank Capacity in Ltr 125 125
Engine Kirloskar make Air Cooled Diesel Engine Kirloskar make Air Cooled Diesel Engine
- Tank mounted of any truck chassis of wheel base 176 “ / 166 “ -
