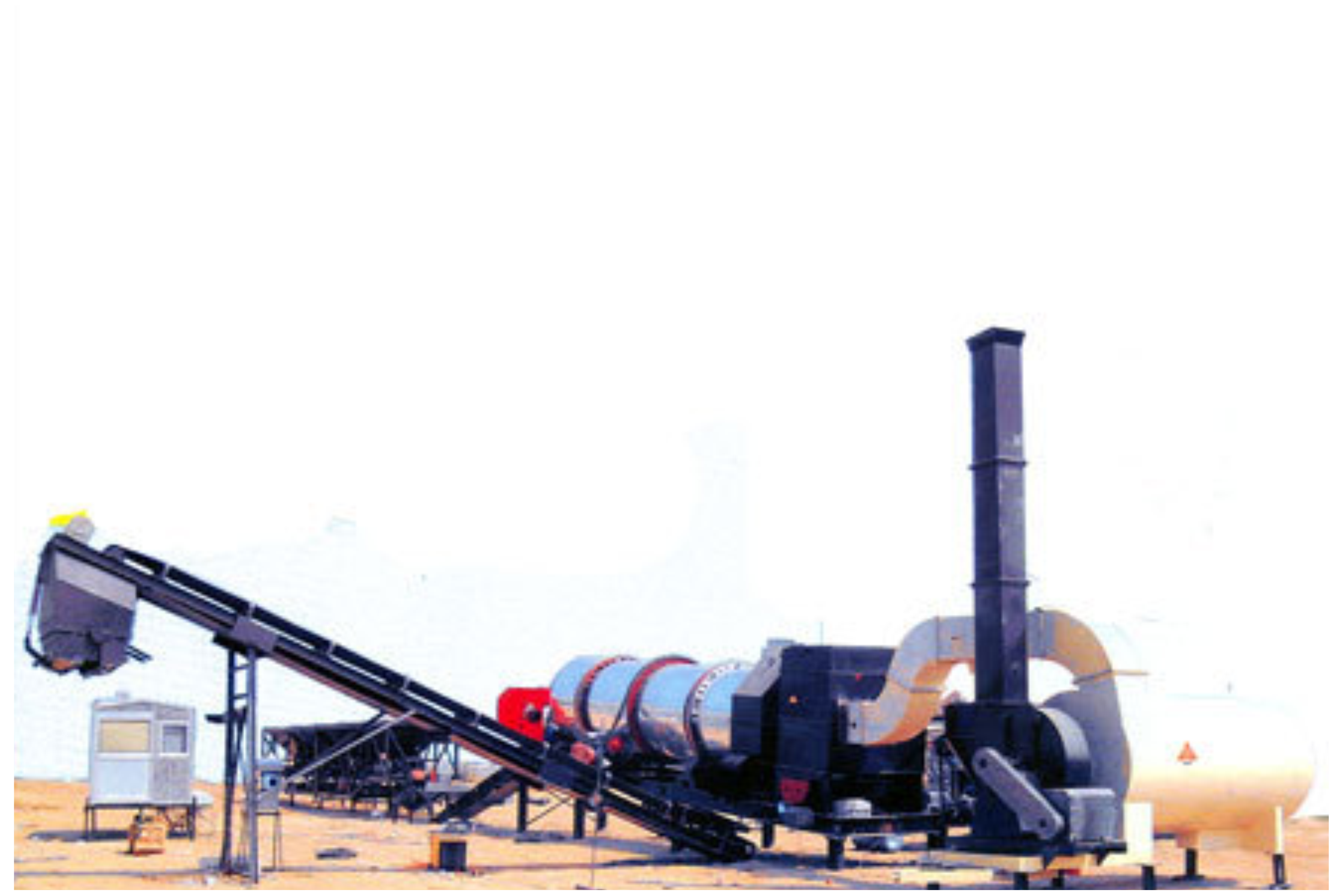

Asphalt Drum Mix Plant
  • Inline storage Four bin Feeder.
  • Gathering Conveyor.
  • Vibrating Screen.
  • Slinger Conveyor.
  • Drum Dryer.
  • Load out Conveyor.
  • Gob Hopper.
  • Bitumen Tank.
  • Power Pack.
  • Control Panel with Control Cabin.
  • LDO Tank.
Description DM 45 DM 50 DM 60
Out Capacity in TPH 45 To 70 70 To 90 90 To 120
Four Bln Feeder Capacity in Tones 32 40 50
Slinger Conveyor and Load Out Conveyor Bell wain in mm 500 500 600
Drum Drive in HP 20 25 40
Bitumen Tank Capacity in Tones 15 20 25
Gob Hopper Capacity in Tores 0.75 0.75 0.75
Fuel Tank Capably in leers 4000 4000 5000
Total Load in HP 80.5 93 130.5
  • Designed to modular Structure and be erected and dismantled quickly, the plant can be erected initially within two weeks and operational within three weeks.
  • Best price/Performance relation.
  • All components are to be design as per containers size for global transportation.
  • East to operate.
  • The rotary dryer support and thrust rollers are manufactured from high strength material



  • Pollution Control Unit.
  • Mineral Filler.
